KVD - Karnaugh-Veitch-Diagram -
Minimization of boolean terms and visualizing Karnaugh-map.
Two solutions for the missing menu-button in newer android versions:
1. try to hold long the recent button
2. go to Settings → Accessibility → Dexterity and Interaction → and turn on Assistant Menu
This software is written for visualizing any boolean expressions from 2 up to 5 variables in a Karnaugh-Veitch-Diagram and for calculating their minimal representations by the Quine-McCluskey algorithm.
Use the touchscreen to edit the boolean expression easily in the KVD (Karnaugh-Veitch-Diagram).

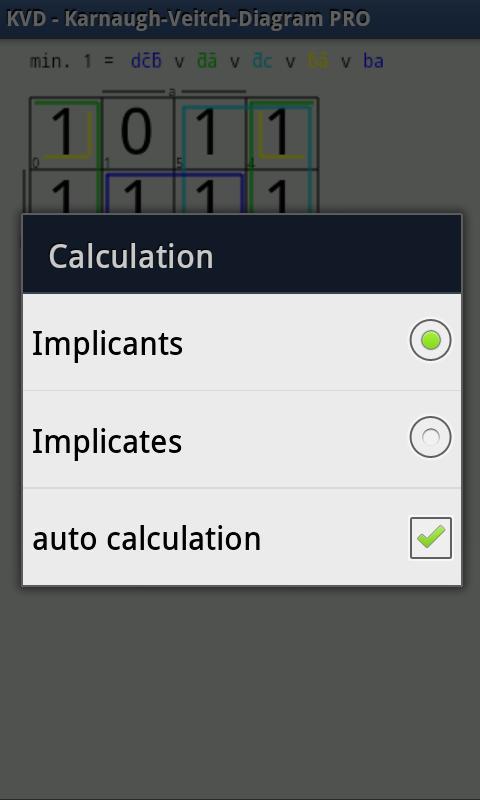

You can also deactivate the auto calculation to control your understanding of the Quine-McCluskey algorithm.
This is the free version. It has restrictions in displaying the content.
The pro-version offers the following additional features:
- Keep screen on: Prevent the device going to sleep mode.
- You can define smallest fontsize and KVD representation. The content will be much more readable. As needed the screen will become scrollable.
M. Hoffmann
History:
Version 1.1.3d
- Reported error 120210_01 fixed: When "auto calculation" was deactivated, the application crashed in some cases.
Version 1.1.2d
- Reported error fixed.
Version 1.1.1d:
- Green and cyan are now more readable.
What's New in the Latest Version 2.0.1

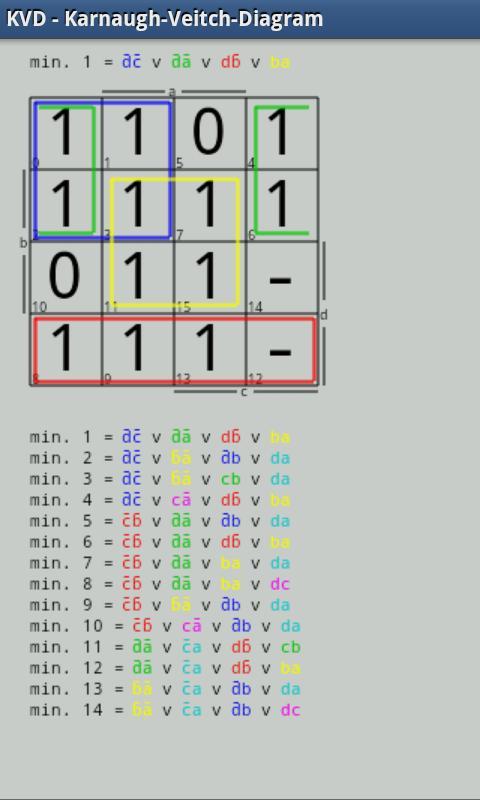

Last updated on Oct 1, 2015 * Now all minimizations can be displayed in a table. You can select a minimization by moving your finger over that table.* Keep screen on: Prevent the device going to sleep mode. (Pro)
* Smallest fontsize: You can define smallest fontsize and KVD representation. The content will be much more readable. As needed the screen will become scrollable. (Pro)
* An error fixed: Application crashed in some cases when switching calculation between implicants und implacates.
2.0.1: Bugfix mintermtable
